Friday, June 4, 2010

Bling Bling

When I replaced the front crossmember, I was planning to leave it exposed and paint it whatever color I end up using for the tongue. After looking at it for a while, I decided it need to look more finished. I wire brushed and painted it with rust converter, then got down to business.I used .040 aluminum and cut the piece I would use to cover the crossmember. This would then be slid between the exterior skin and the metal support plate.The lower support undeneath the front window was in the way, and since.040 doesn't bend all that easily, I drilled out the rivets holding the support and took it off. Plenty of room now. I'll just rivet it back on when I do the rest of the riveting. An extra 4 rivets is not a problem when I'll be doing a few hundred.

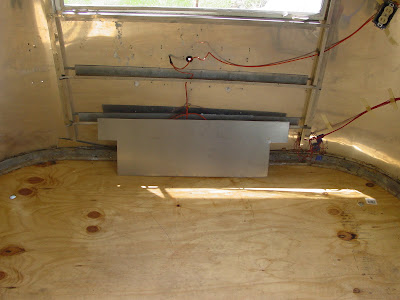

The sheet in place and held with kleckos. It hung down underneath the cross member about 2 and 1/2 or 3 inches. Just enough to bend back up underneath the trailer. A rubber mallet and patience is all it took to get it to bend the way I wanted to.



The finished product. Aluminum looks so much nicer than steel. I don't know if the trailer originally had aluminum there or not. I know that newer Airstreams did, I like the look. The best part is not having to wonder, when everything is all done and I'm camping, if I should have covered it.
